MyScanner™ Cloud Service

MyScanner™ is a secure web portal allowing remote access to your scanner, real-time presentation of scan data and access to support from anywhere in the world.

Features

  • Live load data direct to you, wherever you are

  • 3D Load Profiler

  • Remote control of LVS systems out in the field

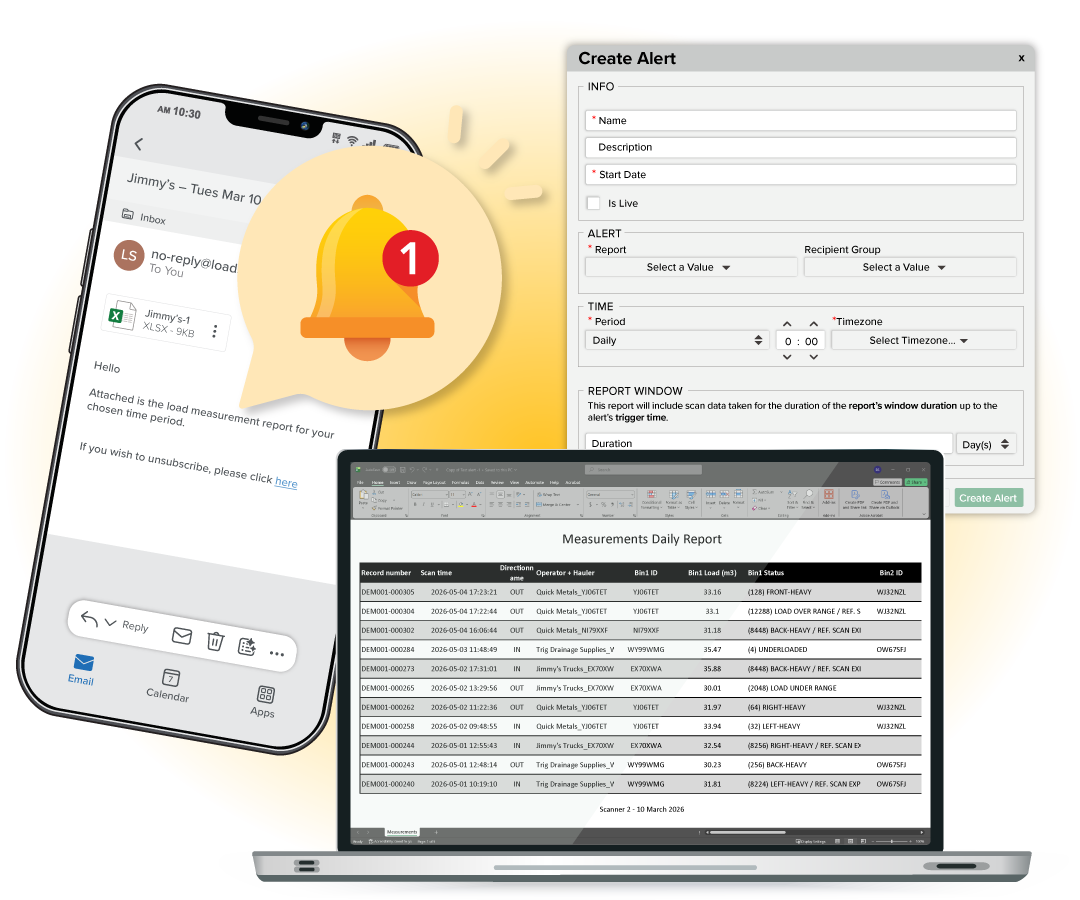

  • Real-time dashboard provides a summary view of each scanner’s activity and identifies errors and warnings

  • Export scan data in supported formats and view and graph historical data to get a more in-depth overview than ever before

  • 24/7 global support including access to user documentation and a repository of frequently asked support questions and answers

  • Full administration control including user access and software updates

Your data security is important to us. MyScanner™ uses industry standard AES-256 encryption security to ensure that all stored data and user accounts are completely secure and protected. Data connections are also fully secured with modern Transport Layer Security (TLS) and follow industry best practice.

Loadscan MyScanner Remote access

Making the most of Applied Mining Technologies!

Our 3D Load Profiler helps you to reduce tire and machinery wear, increase truck fill factors and improve payload safety. Load distribution graphics and statistics for performance monitoring assist you to visually educate and train operators in optimizing payload efficiency. Loadscan’s 3D Load Profiler has been developed to give our MPS customers a visual interaction tool to achieve maximized payload efficiency by utilizing the scan data generated in the MPS measurement process.

Standard Features

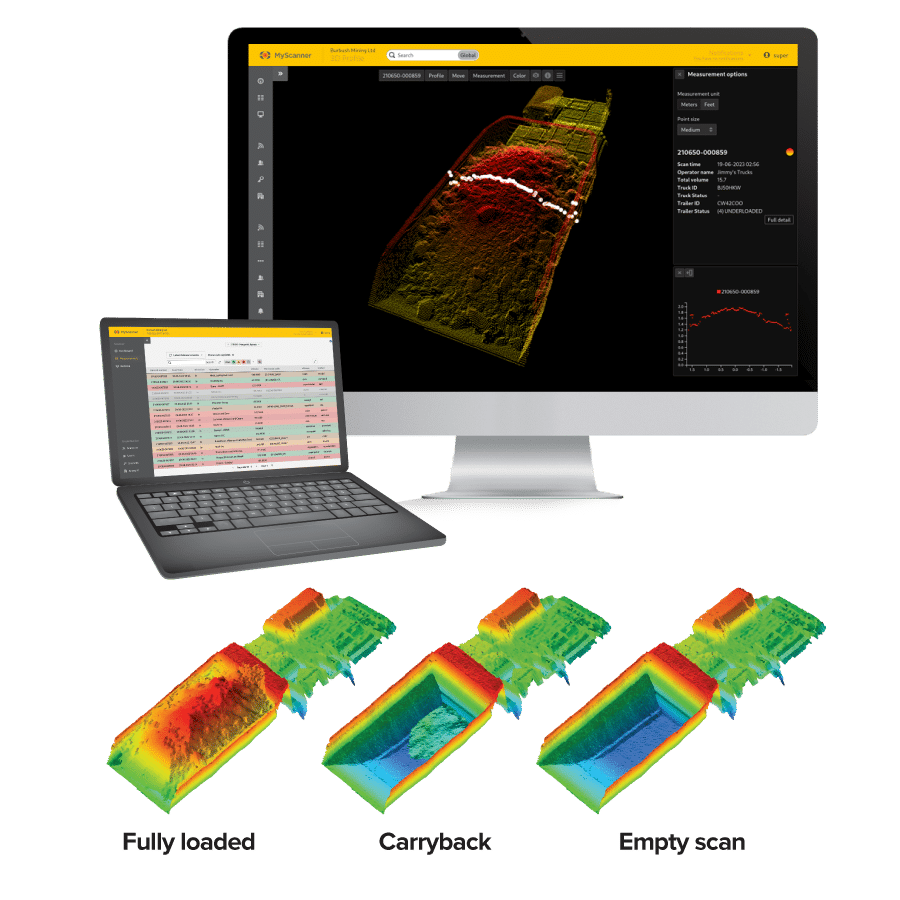

3D Load Profiler Graphics

The Loadscan’s 3D Load Profiler gives a graphical load representation for visual load shape and distribution feedback. Allows operators to detect off-centre or unsafe loading, load fragmentation and general load shape.

Manual Point-to-Point Measurement

Make manual measurements of load features or truck body dimensions with point-to-point measurements on longitudinal and transverse scan data cross-sections. Assists in manual estimates of tray capacity, load distribution, fragmentation, fill factor and so on.

applied mining technologies

Extended Features*

Load Distribution Analysis

How a load is distributed in the truck tray not only affects the efficiency of loading but also the wear on tires and machine as well as safety on the haul road. Avoid expensive tire blow-outs and protect your equipment by loading trucks correctly. Load distribution to the left, right, front or rear of tray can be determined from the centre-of-mass of the load, heap slope angles and other shape features*

Blast Fragmentation Monitoring

The distribution of rock fragment sizes (fragmentation) following blasting affects how easily the blasted rock is shoveled (digability) and the efficiency of truck loading with significant influence on productivity. The fragmentation within a truck load can be estimated from the 3D texture of the visible load surface and reported for every load for blast performance monitoring and optimization.*

Fill Factor Calculation

Loading trucks to capacity without over-loading is important for maximum productivity. Truck fill factor is a measure of how well a truck body is utilized. This can be computed from measured load volume, tray shape and size, load profile, fragmentation and optionally, externally supplied weight data.*

Rock-Fall Risk Identification

Visual highlighting of truck tray edge regions where the load is at risk of falling off the side, with configurable alarm thresholds allows operators to identify unsafe loads.*

Load Profiling gives you the tools to optimize truck loading practices for maximum haulage efficiency and increased productivity. Contact us for more information
